Alpha Series · Public layout
Alpha X Public Specifications
A public-style men’s and women’s layout with doors on both sides of the trailer: 3 toilets and 3 urinals on the men’s side, 4 toilets on the women’s.
- Built in De Queen, Arkansas
- Sold nationwide
- We sell, we do not rent
Specifications
Interior
- Hands-free porcelain commodes
- Self-flushing porcelain urinals
- Roof-mount air conditioning and heat
- Solid surface countertops
- 12-volt fluorescent lighting
- Shatterproof mirrors
- Stainless steel sinks with automatic shut-off faucets
- Non-skid, coin-style, one-piece flooring
- Lockable cabinet doors
- Trash receptacles
- Soap dispensers, toilet tissue holders and paper towel dispensers
- Automatic entry and exit door closers
- Keyed locks on entry and exit doors with weather stripping
- Equipment room with interior lighting
- 3/4-inch treated plywood subfloor
Other Alpha models
- The Alpha II specifications: two private rooms and a 370-gallon waste tank
- The Alpha III specifications: one men’s and two women’s rooms
- The Alpha V specifications: five private rooms for larger crowds
- Back to the whole Alpha Series line
Exterior
- Amber LED porch lights
- Scissor jacks on all four trailer corners
- Platform with full handrails and bottom-step leveling pads
- 650-gallon waste tank
- 110-gallon fresh water tank
- Standard 110-volt extension cord outlet
- Standard water hose connection
- Standard 3-inch banjo waste tank clean-out connection
- Waste tank washout connection
- Waste tank monitor in the equipment room
- Standard 2 5/16-inch ball hitch with adjustable tongue and sand pad
- LED running lights
- Electric brakes with 7-way plug
- Aluminum bonded-seam body
- 3-inch steel C-channel floor joists on 16-inch centers
- 6-inch steel tube frame
- Weatherproof coating on the frame (top, bottom and sides)
- Diamond plate rock guard on the front of the trailer
- Tandem torsion flex axles

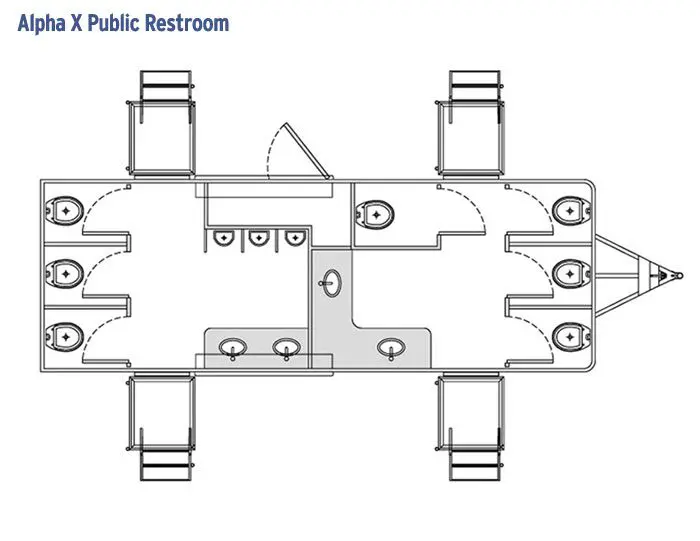

Floor plans
Layouts we build
Drawings from our own plan sheets. Every layout can be changed to fit your site.
Tell us what you need. We will quote it.
Build your trailer in a few steps, or call (800) 789-1212, Mon–Fri 9–5 CT. We build and sell trailers. We do not rent them.
